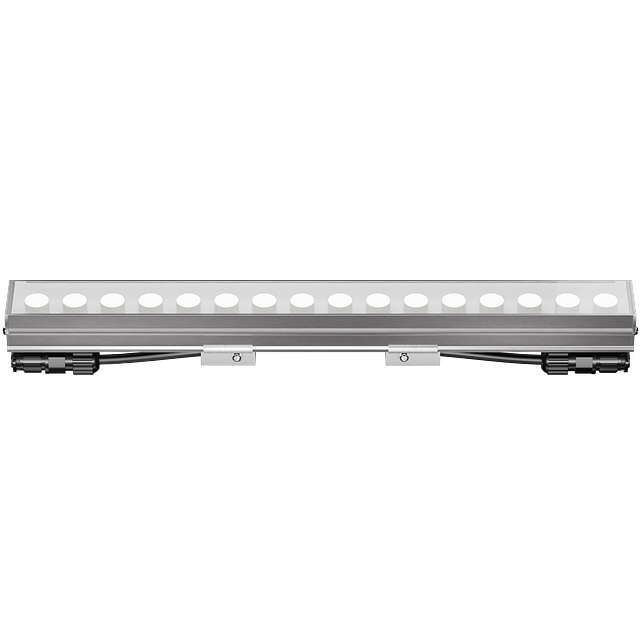

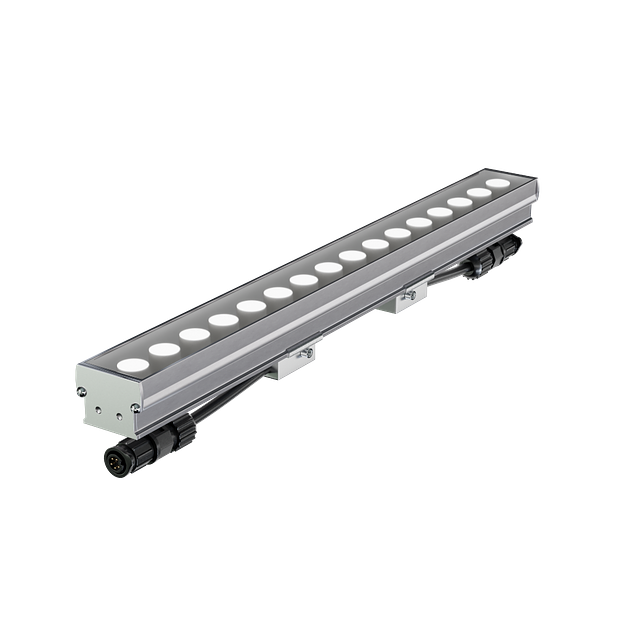

HB3014

Precision Exterior Linear LED for Demanding Architectural Applications

Engineered for long‑run performance and architectural subtlety, the HB3014 Series combines optical accuracy, installation flexibility, and spec‑grade reliability in a compact exterior form. Delivering uniform illumination across runs up to 300 feet, it excels in grazing, wall washing, signage, and exterior cove applications. Nichia bin‑sorted LEDs ensure exceptional color consistency, while a wide range of optics, lengths, CCTs, and powder‑coated finishes allow the fixture to integrate seamlessly into complex geometries. A universal 100–277VAC driver, Plug & Play power system, and comprehensive thermal management support dependable operation in harsh outdoor conditions. Versatile, durable, and highly configurable, the HB3014 is a trusted solution for designers seeking elevated exterior illumination without compromise.
Engineered for long‑run performance and architectural subtlety, the HB3014 Series combines optical accuracy, installation flexibility, and spec‑grade reliability in a compact exterior form. Delivering uniform illumination across runs up to 300 feet, it excels in grazing, wall washing, signage, and exterior cove applications. Nichia bin‑sorted LEDs ensure exceptional color consistency, while a wide range of optics, lengths, CCTs, and powder‑coated finishes allow the fixture to integrate seamlessly into complex geometries. A universal 100–277VAC driver, Plug & Play power system, and comprehensive thermal management support dependable operation in harsh outdoor conditions. Versatile, durable, and highly configurable, the HB3014 is a trusted solution for designers seeking elevated exterior illumination without compromise.

Beam Angle

  • 15
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • H: 1 In.
  • L: 12 In. W: 1.26 In.
  • L: 24 In. W: 1.26 In. H: 1 In.
  • L: 36 In. W: 1.26 In. H: 1 In.
  • L: 48 In. W: 1.26 In.

Dimming Protocol

  • 0-10 V

Lamp Base

  • Integrated

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 486
  • 700

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.5
  • 7

Resources

Beam Angle

  • 15
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • H: 1 In.
  • L: 12 In. W: 1.26 In.
  • L: 24 In. W: 1.26 In. H: 1 In.
  • L: 36 In. W: 1.26 In. H: 1 In.
  • L: 48 In. W: 1.26 In.

Dimming Protocol

  • 0-10 V

Lamp Base

  • Integrated

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 486
  • 700

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.5
  • 7
