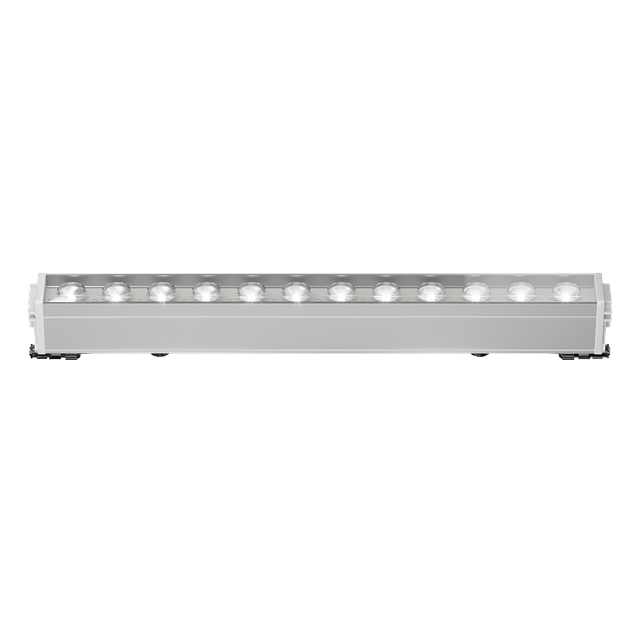

HB40HP

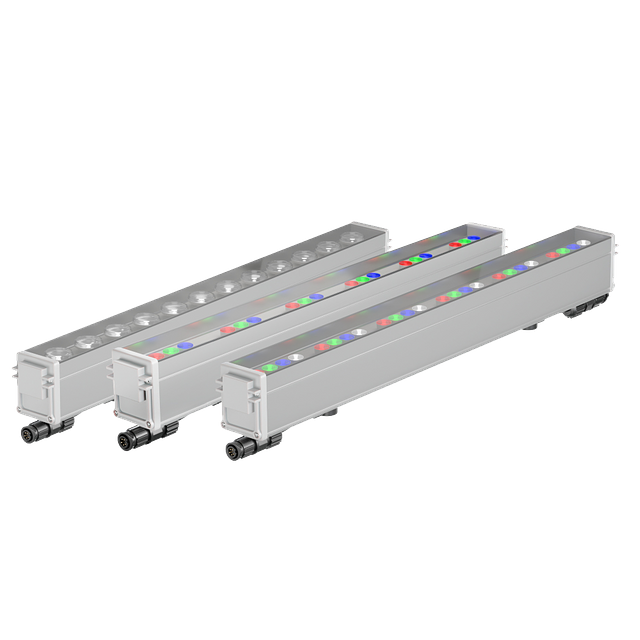

TSLC_Outdoor_0031_HB40HP-FAMILY.pngHB40HP
Exterior Linear LED FixtureWall Washing | Grazing | Dynamic RGBW Façade Lighting
The HB40HP Series is a high‑output exterior linear LED fixture designed for architectural wall washing, surface grazing, and façade lighting. Its slim profile blends into the architecture and delivers strong, controlled illumination for exterior façades and tall interior surfaces.
The HB40HP Series is a high‑output exterior linear LED fixture designed for architectural wall washing, surface grazing, and façade lighting. Its slim profile blends into the architecture and delivers strong, controlled illumination for exterior façades and tall interior surfaces.
Beam Angle
- 13x17
- 15
- 18x58
- 18x26
- 20
- 30x60
- 30
- 45
- 60
- 75
- 90
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 1.69 In. H: 2.15 In.
- L: 19 In. W: 1.69 In. H: 2.15 In.
- L: 28 In. W: 1.69 In. H: 2.15 In.
- L: 37 In. W: 1.69 In. H: 2.15 In.
- L: 46 In. W: 1.69 In. H: 2.15 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 744
- 975
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 8.8
- 12
Resources
Beam Angle
- 13x17
- 15
- 18x58
- 18x26
- 20
- 30x60
- 30
- 45
- 60
- 75
- 90
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 1.69 In. H: 2.15 In.
- L: 19 In. W: 1.69 In. H: 2.15 In.
- L: 28 In. W: 1.69 In. H: 2.15 In.
- L: 37 In. W: 1.69 In. H: 2.15 In.
- L: 46 In. W: 1.69 In. H: 2.15 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 744
- 975
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 8.8
- 12
Configure
