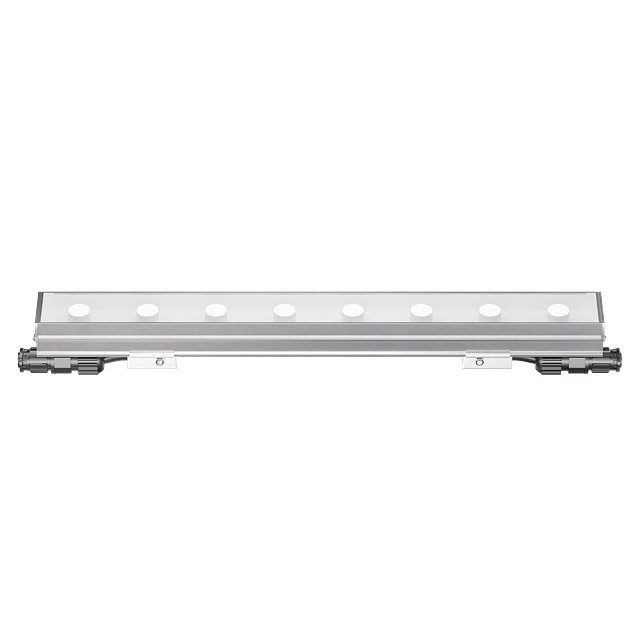

HB308

Precision Exterior Linear LED for Demanding Architectural Applications

The HB308 Series combines optical accuracy, installation flexibility, and spec‑grade performance in a compact exterior linear form. Delivering 439 lm/ft with exceptional uniformity, it excels in grazing, wall washing, accent lighting, and exterior cove applications. Its universal 100–277VAC driver and Plug & Play system streamline setup, while multiple lengths, optics, and powder‑coated finishes allow the fixture to integrate cleanly into complex architectural geometries. Nichia bin‑sorted LEDs ensure consistent color across long runs, and comprehensive thermal management supports reliable operation in harsh outdoor conditions. Versatile, durable, and highly configurable, the HB308 is a trusted solution for designers seeking elevated exterior illumination.
The HB308 Series combines optical accuracy, installation flexibility, and spec‑grade performance in a compact exterior linear form. Delivering 439 lm/ft with exceptional uniformity, it excels in grazing, wall washing, accent lighting, and exterior cove applications. Its universal 100–277VAC driver and Plug & Play system streamline setup, while multiple lengths, optics, and powder‑coated finishes allow the fixture to integrate cleanly into complex architectural geometries. Nichia bin‑sorted LEDs ensure consistent color across long runs, and comprehensive thermal management supports reliable operation in harsh outdoor conditions. Versatile, durable, and highly configurable, the HB308 is a trusted solution for designers seeking elevated exterior illumination.

Beam Angle

  • 15
  • 30
  • 45
  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black
  • Powder Coated
  • White

Dimensions

  • L: 12 In. W: 1.26 In. H: 11 In.
  • L: 24 In. W: 1.26 In.
  • L: 36 In. W: 1.26 In.

Dimming Range

  • Non-Dimmable

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 439

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.25

Resources

Beam Angle

  • 15
  • 30
  • 45
  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black
  • Powder Coated
  • White

Dimensions

  • L: 12 In. W: 1.26 In. H: 11 In.
  • L: 24 In. W: 1.26 In.
  • L: 36 In. W: 1.26 In.

Dimming Range

  • Non-Dimmable

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 439

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.25
