Industry Leading Power Supplies.
The Smart Lighting Company offers a complete line of 100-277VAC/24V power supplies to complete your system. IP66 rated for damp, wet, and dry applications and they support 0-10v ELV, TRIAC, and MLV dimming. Our power supplies are 100% tested and backed by a 5-year warranty to deliver efficient operation and protection against short circuits, overload, and overheating. If you’d like help building your system, contact us for personalized assistance.
Certifications:
UL Listed
Control:
0-10v dimming, ELV dimming, Dimmable
Voltage:
24vdc
Certifications:
UL Listed
Control:
0-10v dimming, ELV dimming, Dimmable
Voltage:
24vdc
Certifications:
UL Listed
Control:
0-10v dimming, ELV dimming, Dimmable
Environment:
Outdoor Wet locations
Voltage:
24vdc
Certifications:
UL Listed
Control:
0-10v dimming, ELV dimming, Dimmable
Environment:
Outdoor Wet locations
Voltage:
24vdc
Control:
0-10v dimming, ELV dimming, Dimmable
Environment:
Outdoor Wet locations
Voltage:
24vdc
Certifications:
UL Listed
Control:
0-10v dimming, ELV dimming, Dimmable
Environment:
Outdoor Wet locations
Voltage:
24vdc

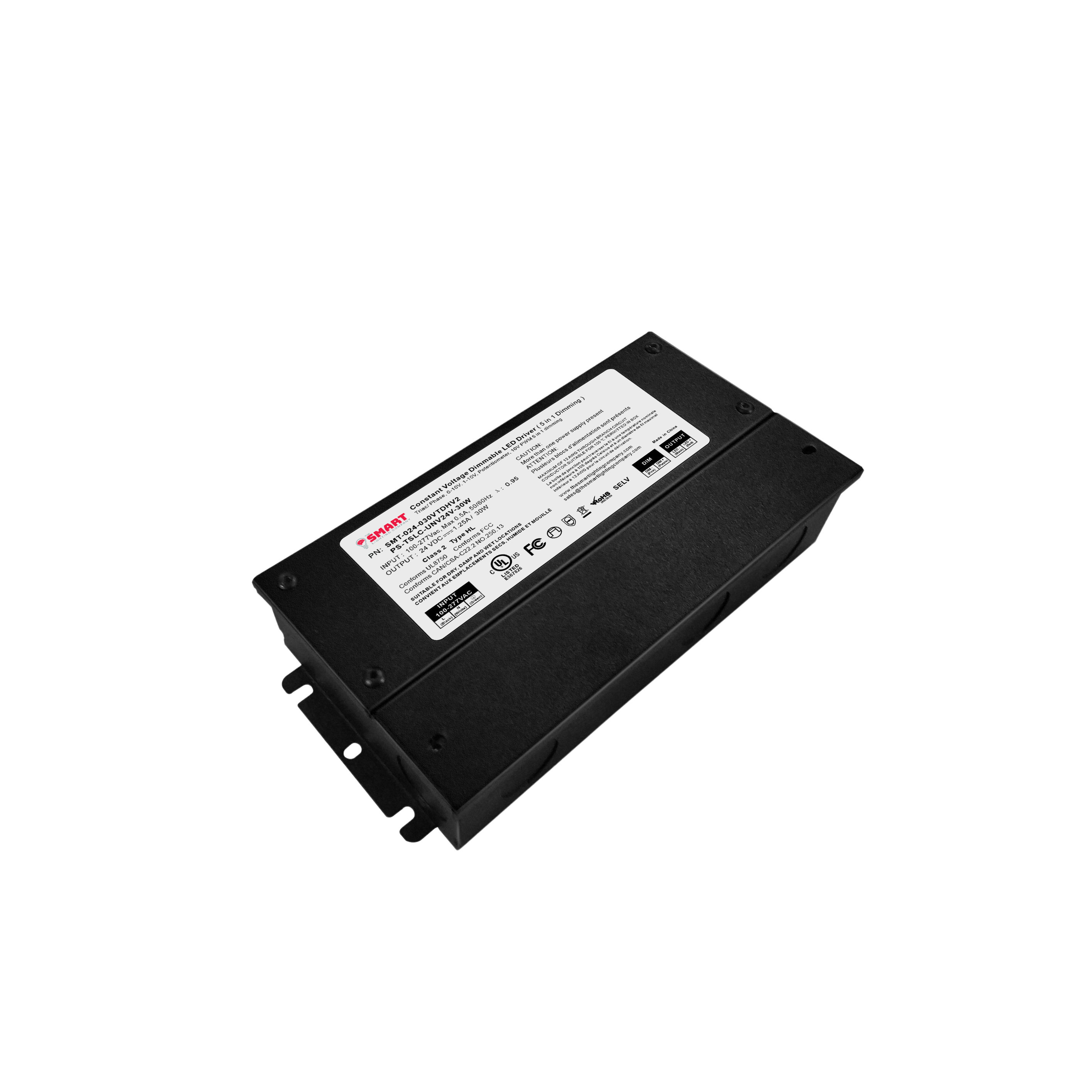

24v 30w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 30W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.99
• Efficiency > 80%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC

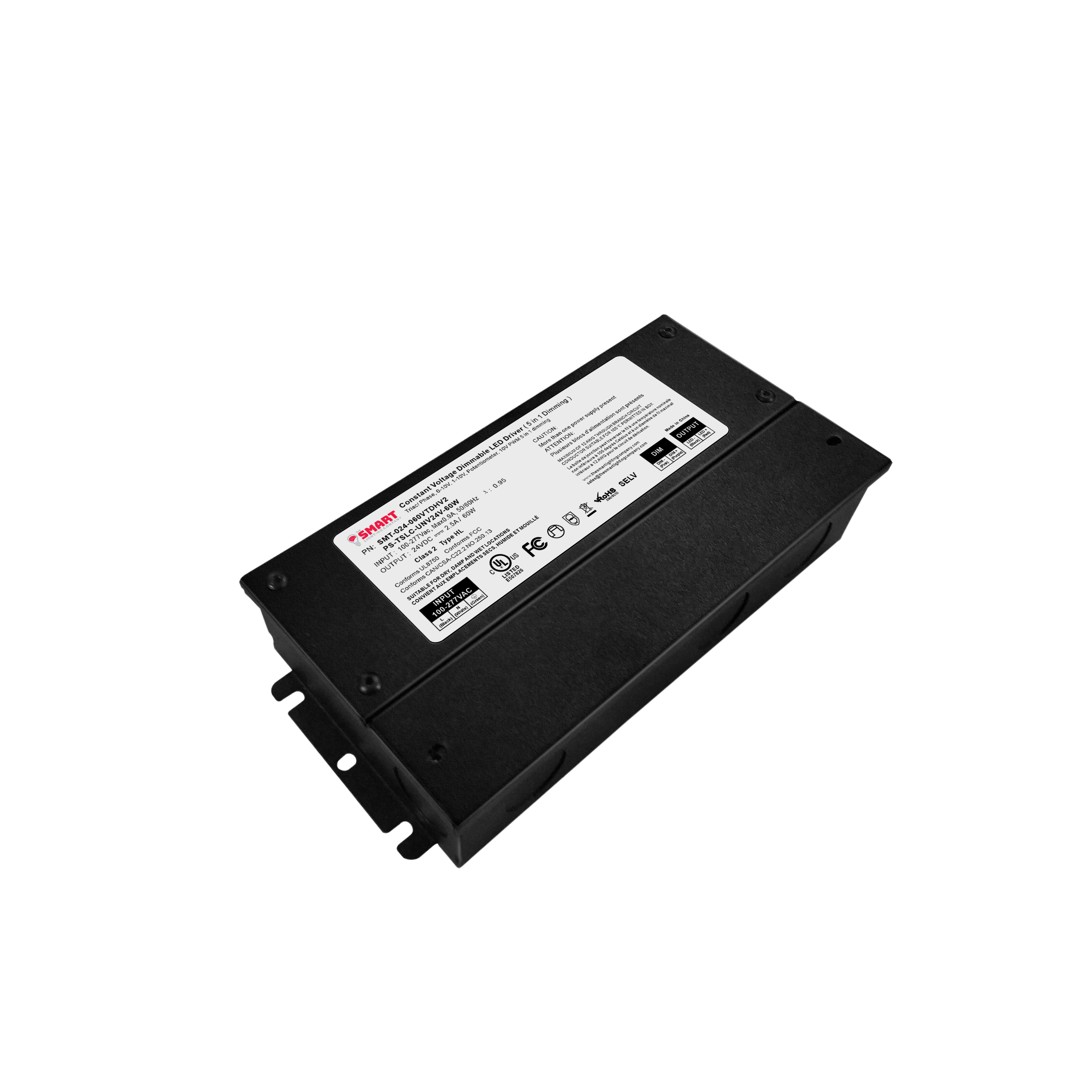

24v 60w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 60W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase/ leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 86%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC

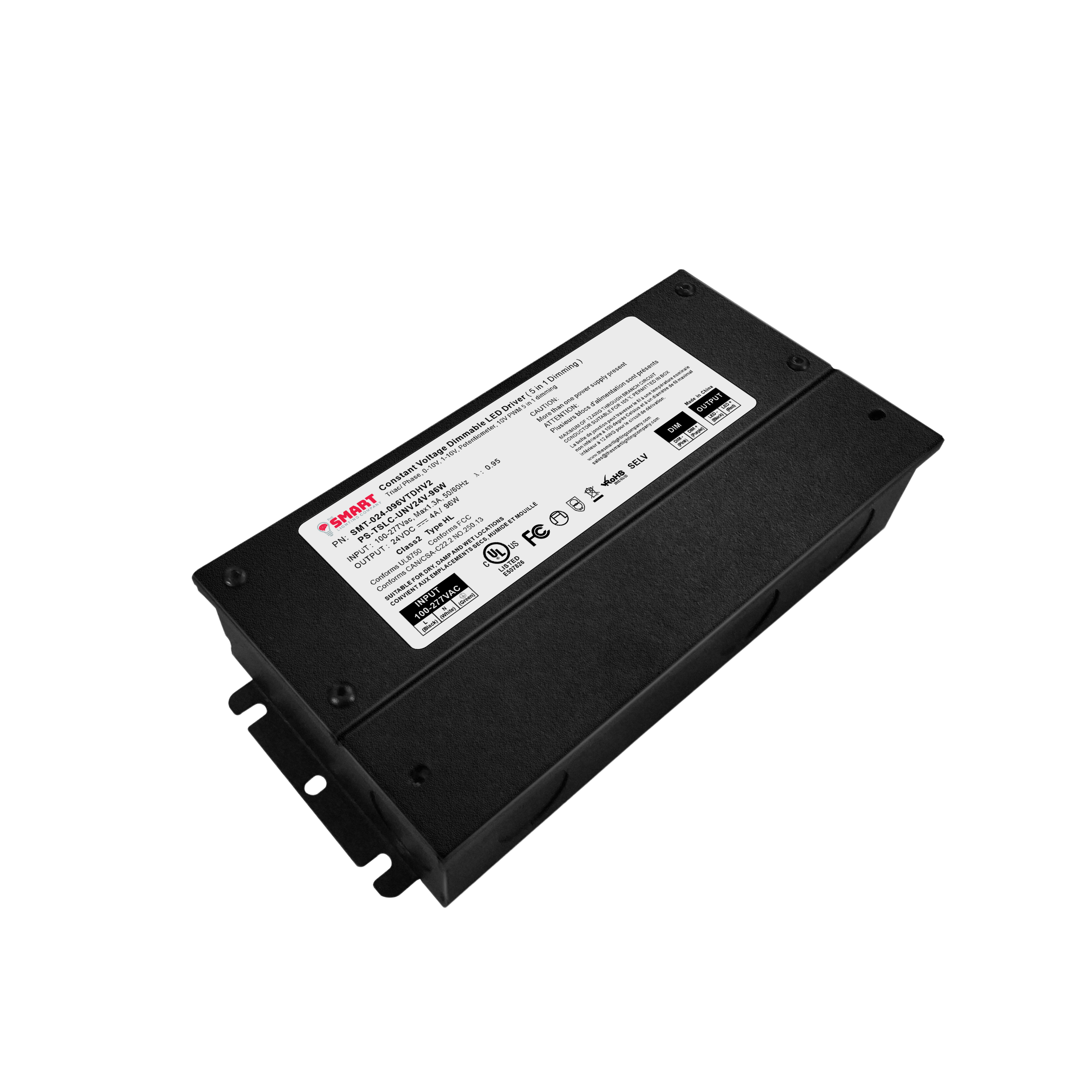

A 24v 96w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES
• 24VDC 96W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 86%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC

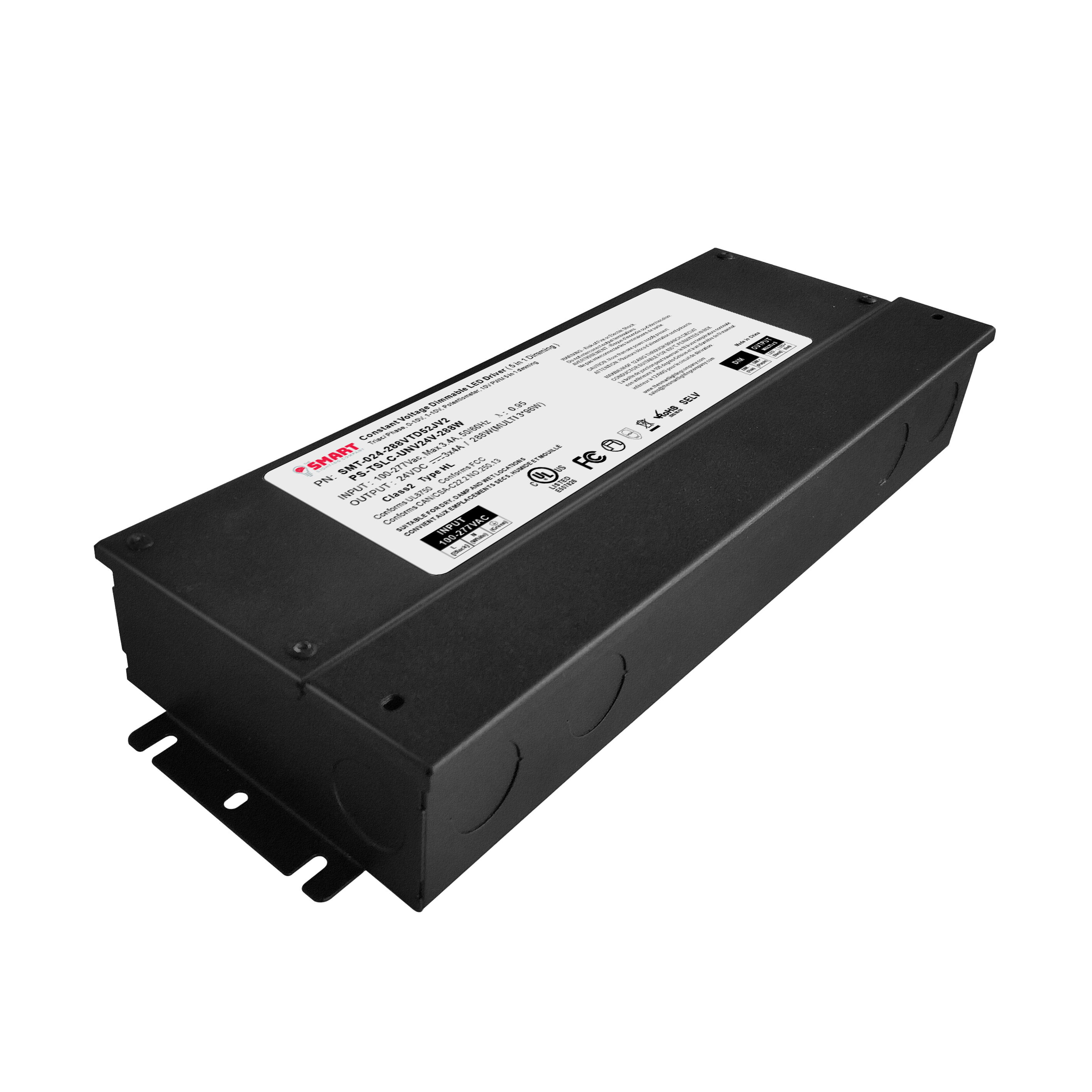

24v, 288w (96x3) Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 96W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 89%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC

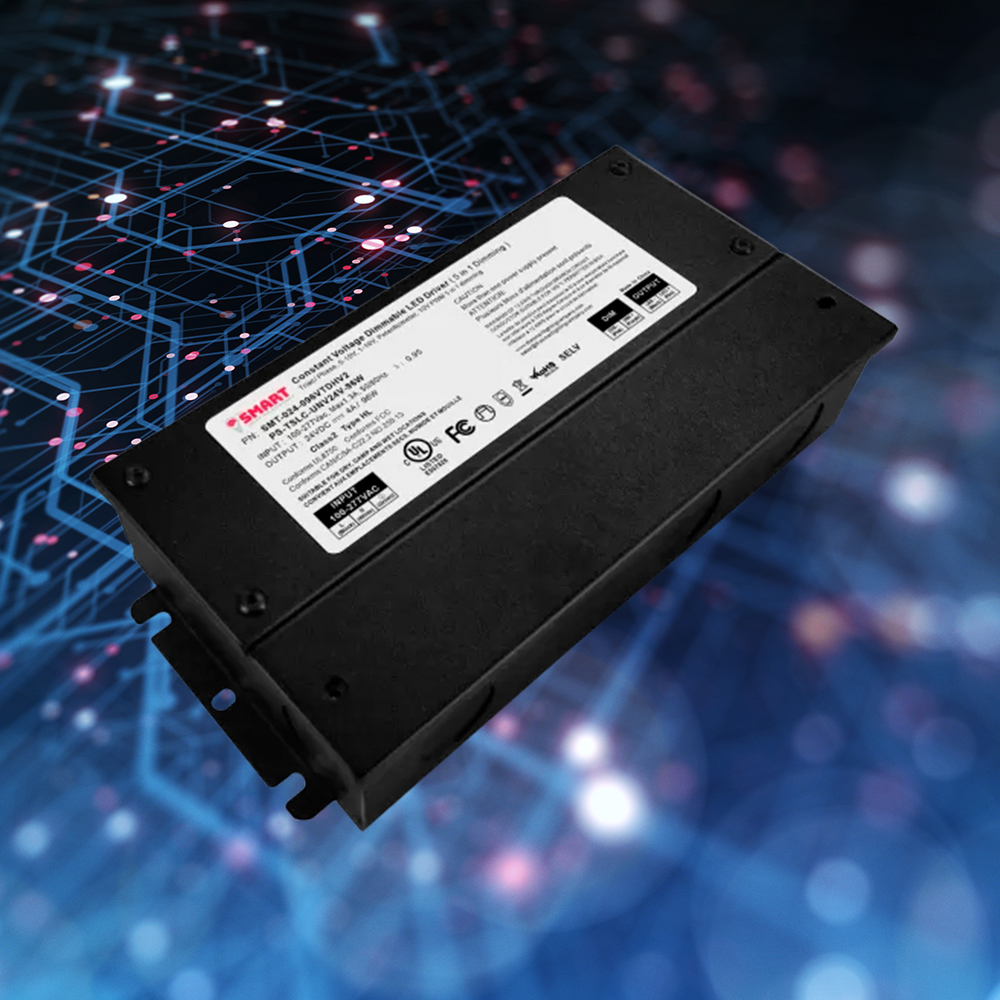

24v 300w LED Power supply with dimming via 0-10v, ELV and TRIAC suitable for wet locations.
FEATURES
· Range 100-305VAC, Typical: 100-277VAC
· Built-in PFC function PF>0.99
· Efficiency > 92%
· Protections: Short circuit/Over loading/ Over temperature
· PWM output, does not change the color index
· Cooling by free air convection
· Metal case, suitable for dry, damp, wet location
· Flicker-free
· Dimming function:
· Phase dimming: work with forward phase/leading edge, MLV and Reverse phase/trailing edge, ELV, TRIAC dimmers
· 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
· Dimming range: 0-100%.
· Load: 10-100%
· Compliance to worldwide safety regulations for lighting
· UL, cUL listed, Type HL rated. FCC
Part Number: PS-TSLC-UNV-24V-96WDVT-P
Features:
Output: Constant Voltage
Range: 100-277VAC
PFC design: Built-in active PFC function
Efficiency: Up to 91%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: Full plastic protection housing, for dry & damp locations (US)
Dimming function: Phase dimming: work with forward phase /leading edge, MLV and Reverse phase /trailing edge,
ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range: Min load is 20%
Min load: 0-100% dimming depth 0.1%
Warranty: 5 years warranty
24v 30w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 30W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.99
• Efficiency > 80%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC
24v 60w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 60W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase/ leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 86%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC
A 24v 96w Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES
• 24VDC 96W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 86%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC
24v, 288w (96x3) Class 2 LED power supply with dimming via 0-10v, ELV and, TRIAC suitable for wet locations.
FEATURES:
• 24VDC 96W LED DRIVER
• Smooth flicker free dimming - Dimming range: 0-100%.
• Works with forward phase /leading edge, MLV and Reverse
phase /trailing edge, ELV, TRIAC dimmers
• 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
• Input voltage - 100 - 277VAC
• IP66 - Wet, damp or dry locations
• Load: 10-100%
• Built-in PFC function PF>0.98
• Efficiency > 89%
• Protections: Short circuit/Over loading/ Over temperature
• Cooling by free air convection
• PWM output, does not change the color index
• UL, cUL listed, Class 2 unit, Type HL rated. FCC
24v 300w LED Power supply with dimming via 0-10v, ELV and TRIAC suitable for wet locations.
FEATURES
· Range 100-305VAC, Typical: 100-277VAC
· Built-in PFC function PF>0.99
· Efficiency > 92%
· Protections: Short circuit/Over loading/ Over temperature
· PWM output, does not change the color index
· Cooling by free air convection
· Metal case, suitable for dry, damp, wet location
· Flicker-free
· Dimming function:
· Phase dimming: work with forward phase/leading edge, MLV and Reverse phase/trailing edge, ELV, TRIAC dimmers
· 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
· Dimming range: 0-100%.
· Load: 10-100%
· Compliance to worldwide safety regulations for lighting
· UL, cUL listed, Type HL rated. FCC
Part Number: PS-TSLC-UNV-24V-96WDVT-P
Features:
Output: Constant Voltage
Range: 100-277VAC
PFC design: Built-in active PFC function
Efficiency: Up to 91%
Protections: Short circuit/ over load/ over temperature
Heat dissipation: Cooling by free air convection
Waterproof performance: Full plastic protection housing, for dry & damp locations (US)
Dimming function: Phase dimming: work with forward phase /leading edge, MLV and Reverse phase /trailing edge,
ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range: Min load is 20%
Min load: 0-100% dimming depth 0.1%
Warranty: 5 years warranty
