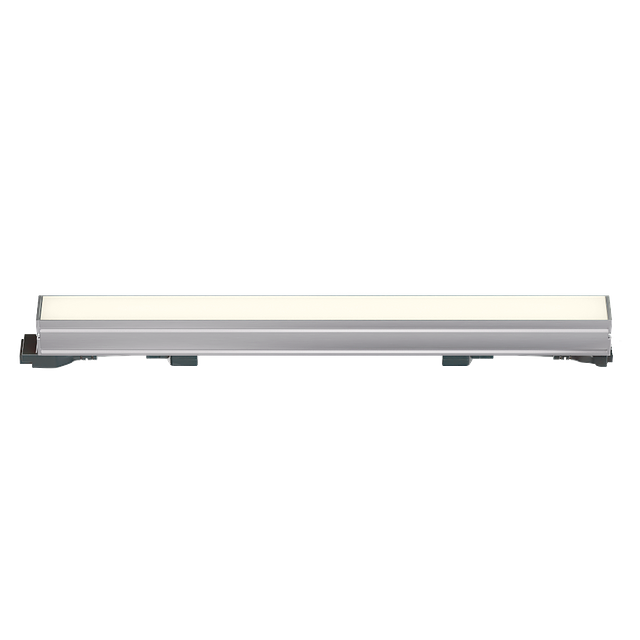

HB3024IF
TSLC_Indoor_0008_HB3024IF-2.pngHB3024IF
Precision Linear LED for Uniform Cove and Accent Lighting
Engineered for designers seeking both performance and subtlety, the HB3024if Series combines optical uniformity, installation flexibility, and cost‑efficient specification‑grade output. Its flat opaque lens delivers smooth, glare‑free illumination, while Nichia bin‑sorted LEDs maintain exceptional color consistency across long runs. A universal 100/277VAC driver, Plug & Play connectors, and multiple lengths and finishes allow the fixture to adapt to a wide range of architectural conditions. With options for side or bottom feed and mounting systems suited for tight spaces, the HB3024if provides a dependable, streamlined solution for cove, accent, and general interior lighting.
Engineered for designers seeking both performance and subtlety, the HB3024if Series combines optical uniformity, installation flexibility, and cost‑efficient specification‑grade output. Its flat opaque lens delivers smooth, glare‑free illumination, while Nichia bin‑sorted LEDs maintain exceptional color consistency across long runs. A universal 100/277VAC driver, Plug & Play connectors, and multiple lengths and finishes allow the fixture to adapt to a wide range of architectural conditions. With options for side or bottom feed and mounting systems suited for tight spaces, the HB3024if provides a dependable, streamlined solution for cove, accent, and general interior lighting.
Beam Angle
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
CRI
- 85
- 95
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- 0-10 V
Distribution
- Diffuse
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 458
Materials
- Aluminum
- Polycarbonate
Mounting
- Bracket
- Cove
- Wall
Ratings & Compliance
- Dry
- IP40
- Interior
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 4.5
Resources
Beam Angle
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
CRI
- 85
- 95
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- 0-10 V
Distribution
- Diffuse
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 458
Materials
- Aluminum
- Polycarbonate
Mounting
- Bracket
- Cove
- Wall
Ratings & Compliance
- Dry
- IP40
- Interior
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 4.5
