HB3015I RGB

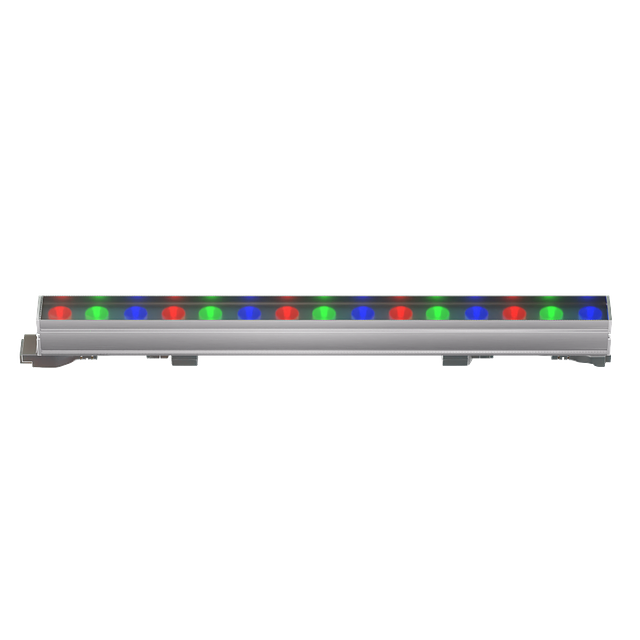

TSLC_Indoor_0014_HB3015I-3.pngHB3015I RGB
Compact RGB Linear LED for Interior Grazing, Wall Washing & Cove Effects
The HB3015i RGB Series brings dynamic, color‑changing illumination to interior environments in a slim, specification‑grade form factor ideal for grazing, wall washing, and cove lighting. Powered by Nichia bin‑sorted LEDs and precision optical lenses, it delivers consistent, high‑quality RGB output with excellent efficiency. A universal 100/277VAC integral driver supports long runs, while DMX control with self‑addressing enables seamless programming and color management. Available in multiple lengths, optics, and finishes, the HB3015i RGB integrates easily into narrow architectural spaces with bottom or side wire‑feed options. Its Plug & Play connectors simplify installation, and full thermal management ensures reliable performance. Designed for creating vibrant, visually engaging interiors, it offers a versatile, economical solution for specifiers seeking refined RGB illumination
The HB3015i RGB Series brings dynamic, color‑changing illumination to interior environments in a slim, specification‑grade form factor ideal for grazing, wall washing, and cove lighting. Powered by Nichia bin‑sorted LEDs and precision optical lenses, it delivers consistent, high‑quality RGB output with excellent efficiency. A universal 100/277VAC integral driver supports long runs, while DMX control with self‑addressing enables seamless programming and color management. Available in multiple lengths, optics, and finishes, the HB3015i RGB integrates easily into narrow architectural spaces with bottom or side wire‑feed options. Its Plug & Play connectors simplify installation, and full thermal management ensures reliable performance. Designed for creating vibrant, visually engaging interiors, it offers a versatile, economical solution for specifiers seeking refined RGB illumination
Beam Angle
- 15
- 30
- 30x60
- 45
- 60
- 75
- 90
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Aluminum
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In.
- L: 24 In.
- L: 36 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- DMX
Dynamic LED Color
- RGB
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 136
Materials
- Aluminum
Ratings & Compliance
- Dry
- IP40
- Interior
Voltage
- 100-277 V
Warranty
- 5 yr
Watts
- 5.6
- 11.2
- 16.8
- 22.4
Watts / Linear Ft.
- 6
Resources
Beam Angle
- 15
- 30
- 30x60
- 45
- 60
- 75
- 90
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Aluminum
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In.
- L: 24 In.
- L: 36 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- DMX
Dynamic LED Color
- RGB
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 136
Materials
- Aluminum
Ratings & Compliance
- Dry
- IP40
- Interior
Voltage
- 100-277 V
Warranty
- 5 yr
Watts
- 5.6
- 11.2
- 16.8
- 22.4
Watts / Linear Ft.
- 6
