HB3018PD RGB

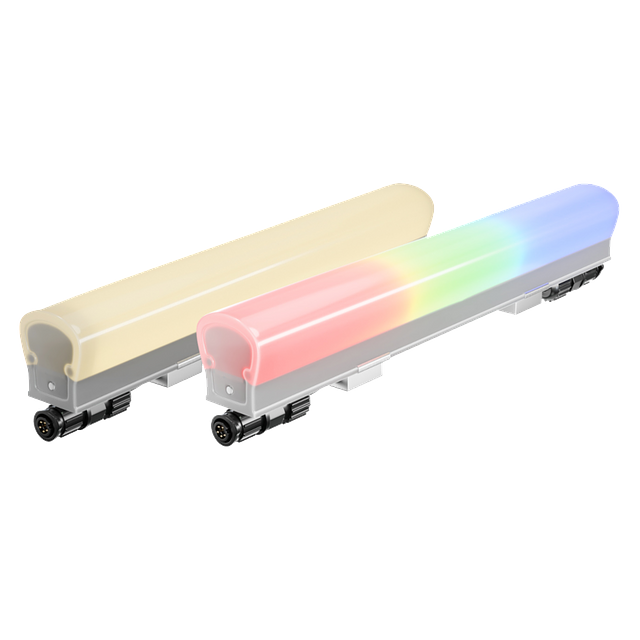

TSLC_Outdoor_0035_HB30PD-group.pngHB3018PD RGB
Exterior Direct‑View Color for Perimeter and Edge Lighting
The HB3018PD RGB Series delivers vibrant, direct‑view color for exterior edge, accent, and façade‑outline applications. Its one‑piece domed polycarbonate housing and bin‑sorted Nichia LEDs create a smooth, pixel‑free glow ideal for perimeter tracing and architectural expression. Rated for harsh outdoor environments, the fixture uses just 6W/ft while maintaining long‑term color quality and uniformity.
The HB3018PD RGB Series delivers vibrant, direct‑view color for exterior edge, accent, and façade‑outline applications. Its one‑piece domed polycarbonate housing and bin‑sorted Nichia LEDs create a smooth, pixel‑free glow ideal for perimeter tracing and architectural expression. Rated for harsh outdoor environments, the fixture uses just 6W/ft while maintaining long‑term color quality and uniformity.
Beam Angle
- 120
Dimensions
- L: 12 In. W: 1.57 In. H: 2.22 In.
- L: 24 In. W: 1.57 In. H: 2.22 In.
- L: 36 In. W: 1.57 In. H: 2.22 In.
- L: 48 In. W: 1.57 In. H: 2.22 In.
Dimming Protocol
- DMX
Distribution
- Direct
Dynamic LED Color
- RGB
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Materials
- Polycarbonate
Mounting
- Bracket
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 6
Resources
Beam Angle
- 120
Dimensions
- L: 12 In. W: 1.57 In. H: 2.22 In.
- L: 24 In. W: 1.57 In. H: 2.22 In.
- L: 36 In. W: 1.57 In. H: 2.22 In.
- L: 48 In. W: 1.57 In. H: 2.22 In.
Dimming Protocol
- DMX
Distribution
- Direct
Dynamic LED Color
- RGB
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Materials
- Polycarbonate
Mounting
- Bracket
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 6
