HB3036IR RGBW

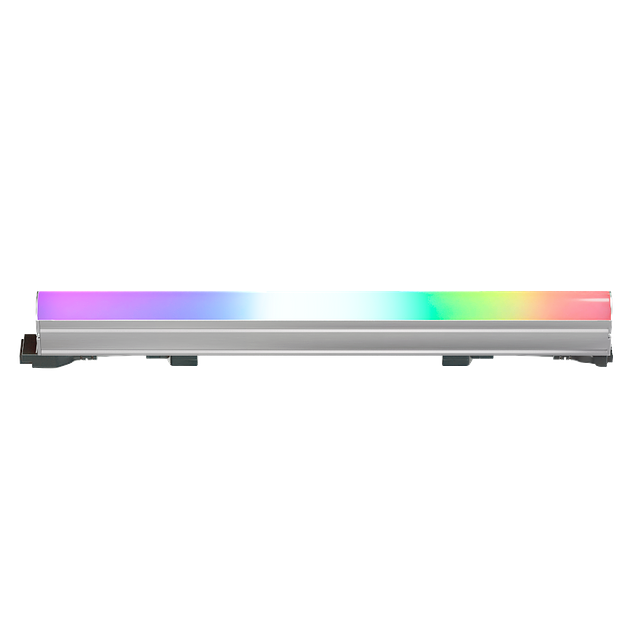

TSLC_Indoor_0005_HB3036ir-RGBW.pngHB3036IR RGBW
Precision RGBW Linear LED for Dynamic Interior Flood, Accent & Cove Applications
Engineered for designers who demand both expressive color and architectural subtlety, the HB3036ir RGBW Series combines DMX‑controlled RGBW output, optical refinement, and installation flexibility in a low‑profile linear form. Its Nichia bin‑sorted LEDs ensure consistent, high‑quality illumination, while the opaque dome lens eliminates pixelation for a smooth, direct‑view aesthetic. A universal 100/277VAC driver supports extended runs, and Plug & Play connectors streamline setup. With multiple lengths, finishes, mounting options, and bottom or side feed configurations, the HB3036ir RGBW integrates cleanly into narrow coves, accent details, and architectural surfaces. Efficient, adaptable, and visually precise, it provides a dependable, economical foundation for creating immersive interior environments.
Engineered for designers who demand both expressive color and architectural subtlety, the HB3036ir RGBW Series combines DMX‑controlled RGBW output, optical refinement, and installation flexibility in a low‑profile linear form. Its Nichia bin‑sorted LEDs ensure consistent, high‑quality illumination, while the opaque dome lens eliminates pixelation for a smooth, direct‑view aesthetic. A universal 100/277VAC driver supports extended runs, and Plug & Play connectors streamline setup. With multiple lengths, finishes, mounting options, and bottom or side feed configurations, the HB3036ir RGBW integrates cleanly into narrow coves, accent details, and architectural surfaces. Efficient, adaptable, and visually precise, it provides a dependable, economical foundation for creating immersive interior environments.
Beam Angle
- 120
CCT
- 3000K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- DMX
Distribution
- Diffuse
Dynamic LED Color
- RGBW
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Materials
- Aluminum
- Polycarbonate
Mounting
- Bracket
- Cove
- Hanging
Ratings & Compliance
- Dry
- IP40
- Interior
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 6
Resources
Beam Angle
- 120
CCT
- 3000K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Protocol
- DMX
Distribution
- Diffuse
Dynamic LED Color
- RGBW
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Materials
- Aluminum
- Polycarbonate
Mounting
- Bracket
- Cove
- Hanging
Ratings & Compliance
- Dry
- IP40
- Interior
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 6
