HB3014IR

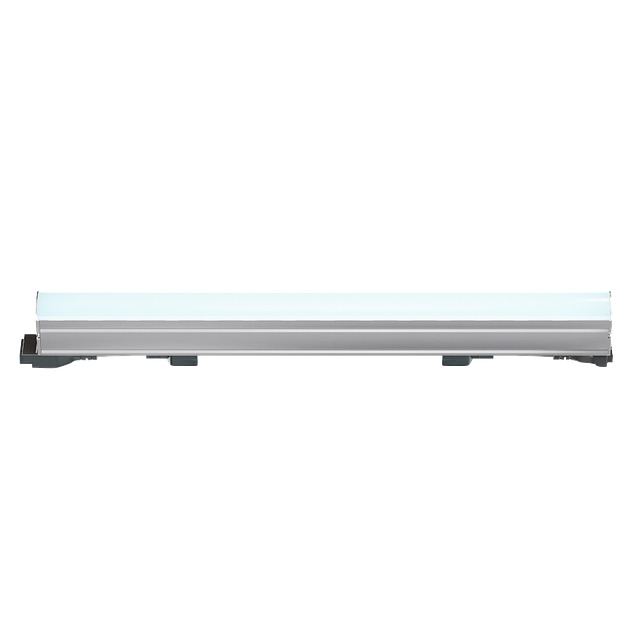

Slim Interior Linear LED for Accent and General Illumination

The HB3014ir Series delivers spec‑grade performance in a compact profile designed for tight interior spaces where clean, consistent illumination is essential. As an energy‑saving replacement for fluorescent tubes, it provides 365 lm/ft (4.5 W/ft) or 458 lm/ft (7 W/ft) with a smooth dome lens that enhances both accent and general lighting applications. Nichia bin‑sorted LEDs ensure uniform, high‑quality output, while a universal 100/277VAC integral driver, four available lengths, and a wide range of color temperatures support diverse design needs. A Plug & Play cable system, advanced thermal management, and bottom or side wire‑feed options streamline installation. With the ability to run over 250 feet continuously, the HB3014ir offers a reliable, economical solution for long, uninterrupted lines of interior illumination.
The HB3014ir Series delivers spec‑grade performance in a compact profile designed for tight interior spaces where clean, consistent illumination is essential. As an energy‑saving replacement for fluorescent tubes, it provides 365 lm/ft (4.5 W/ft) or 458 lm/ft (7 W/ft) with a smooth dome lens that enhances both accent and general lighting applications. Nichia bin‑sorted LEDs ensure uniform, high‑quality output, while a universal 100/277VAC integral driver, four available lengths, and a wide range of color temperatures support diverse design needs. A Plug & Play cable system, advanced thermal management, and bottom or side wire‑feed options streamline installation. With the ability to run over 250 feet continuously, the HB3014ir offers a reliable, economical solution for long, uninterrupted lines of interior illumination.

Beam Angle

  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimming Protocol

  • 0-10 V

Distribution

  • Diffuse

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 365
  • 458

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Bracket
  • Wall

Ratings & Compliance

  • Dry
  • IP40
  • Interior

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.5
  • 7

Resources

Beam Angle

  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimming Protocol

  • 0-10 V

Distribution

  • Diffuse

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 365
  • 458

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Bracket
  • Wall

Ratings & Compliance

  • Dry
  • IP40
  • Interior

Static LED Color

  • Amber
  • Blue
  • Green
  • Red
  • White

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 4.5
  • 7
