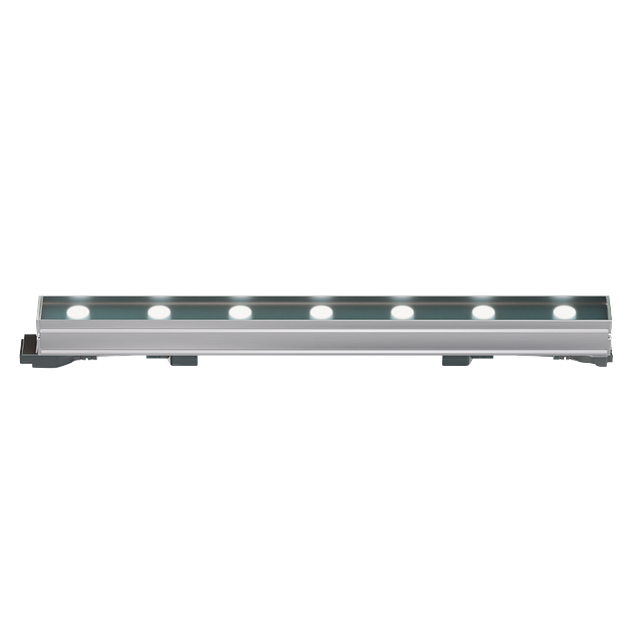

HB308I
TSLC_Indoor_0020_HB308i.pngHB308I
Compact Interior Linear LED for Flood, Graze & Cove Applications
The HB308i Series delivers 359 lm/ft of clean, uniform illumination for interior flood lighting, wall washing, grazing, and cove accents—all within a low‑profile housing that fits effortlessly into tight architectural details. Powered by Nichia bin‑sorted LEDs and paired with precise optical lenses, it provides consistent, high‑quality output with excellent efficiency. A universal 100/277VAC integral driver, Plug & Play power/signal connectivity, and multiple mounting options streamline installation across four fixture lengths and a range of color temperatures. With bottom or side wire‑feed choices and a compact form factor, the HB308i offers a versatile, economical solution for specifiers seeking reliable, spec‑grade interior illumination.
The HB308i Series delivers 359 lm/ft of clean, uniform illumination for interior flood lighting, wall washing, grazing, and cove accents—all within a low‑profile housing that fits effortlessly into tight architectural details. Powered by Nichia bin‑sorted LEDs and paired with precise optical lenses, it provides consistent, high‑quality output with excellent efficiency. A universal 100/277VAC integral driver, Plug & Play power/signal connectivity, and multiple mounting options streamline installation across four fixture lengths and a range of color temperatures. With bottom or side wire‑feed choices and a compact form factor, the HB308i offers a versatile, economical solution for specifiers seeking reliable, spec‑grade interior illumination.
Beam Angle
- 15
- 30
- 30x60
- 45
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Range
- Non-Dimmable
Distribution
- Narrow
- Wall Wash
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens
- 359
Lumens/Linear Ft.
- 439
Materials
- Aluminum
- PVC
- Polycarbonate
Mounting
- Bracket
- Cove
- Surface
- Wall
Ratings & Compliance
- Dry
- IP40
- Interior
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 4.4
Resources
Beam Angle
- 15
- 30
- 30x60
- 45
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 12 In. W: 1.26 In. H: 1.26 In.
- L: 24 In. W: 1.26 In. H: 1.26 In.
- L: 36 In. W: 1.26 In. H: 1.26 In.
- L: 48 In. W: 1.26 In. H: 1.26 In.
Dimming Range
- Non-Dimmable
Distribution
- Narrow
- Wall Wash
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens
- 359
Lumens/Linear Ft.
- 439
Materials
- Aluminum
- PVC
- Polycarbonate
Mounting
- Bracket
- Cove
- Surface
- Wall
Ratings & Compliance
- Dry
- IP40
- Interior
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts / Linear Ft.
- 4.4
