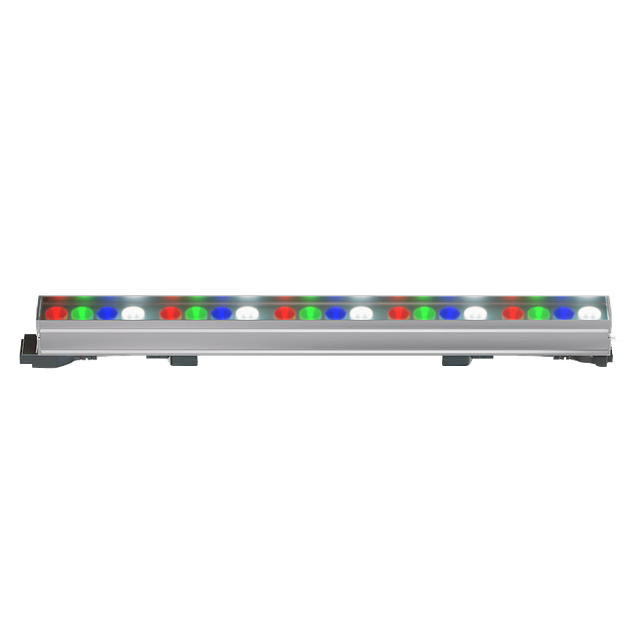

HB3016I RGBW

Compact RGBW Linear LED for Interior Grazing, Wall Washing & Cove Lighting

The HB3016i RGBW Series delivers dynamic, color‑changing illumination in a slim, specification‑grade form ideal for grazing, wall washing, cove lighting, and general interior accents. Powered by Nichia bin‑sorted LEDs and precision optical lenses, it produces vibrant, uniform RGBW output with excellent efficiency. A universal 100/277VAC integral driver supports long runs, while DMX control with self‑addressing enables seamless programming and color management. Multiple fixture lengths, optics, finishes, and bottom or side wire‑feed options make integration into tight architectural spaces straightforward. With Plug & Play connectors and full thermal management, the HB3016i RGBW offers an economical, high‑performance solution for creating expressive, visually engaging interior environments.
The HB3016i RGBW Series delivers dynamic, color‑changing illumination in a slim, specification‑grade form ideal for grazing, wall washing, cove lighting, and general interior accents. Powered by Nichia bin‑sorted LEDs and precision optical lenses, it produces vibrant, uniform RGBW output with excellent efficiency. A universal 100/277VAC integral driver supports long runs, while DMX control with self‑addressing enables seamless programming and color management. Multiple fixture lengths, optics, finishes, and bottom or side wire‑feed options make integration into tight architectural spaces straightforward. With Plug & Play connectors and full thermal management, the HB3016i RGBW offers an economical, high‑performance solution for creating expressive, visually engaging interior environments.

Beam Angle

  • 15
  • 30x60
  • 30
  • 45
  • 60
  • 75
  • 90
  • 120

CCT

  • 3000K

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 12 In. W: 1.26 In. H: 1.26 In.
  • L: 24 In. W: 1.26 In. H: 1.26 In.
  • L: 36 In. W: 1.26 In. H: 1.26 In.
  • L: 48 In. W: 1.26 In. H: 1.26 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGBW

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 360

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Bracket
  • Cove
  • Hanging
  • Wall

Ratings & Compliance

  • Dry
  • IP40
  • Interior

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 6

Resources

Beam Angle

  • 15
  • 30x60
  • 30
  • 45
  • 60
  • 75
  • 90
  • 120

CCT

  • 3000K

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 12 In. W: 1.26 In. H: 1.26 In.
  • L: 24 In. W: 1.26 In. H: 1.26 In.
  • L: 36 In. W: 1.26 In. H: 1.26 In.
  • L: 48 In. W: 1.26 In. H: 1.26 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGBW

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 360

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Bracket
  • Cove
  • Hanging
  • Wall

Ratings & Compliance

  • Dry
  • IP40
  • Interior

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 6
