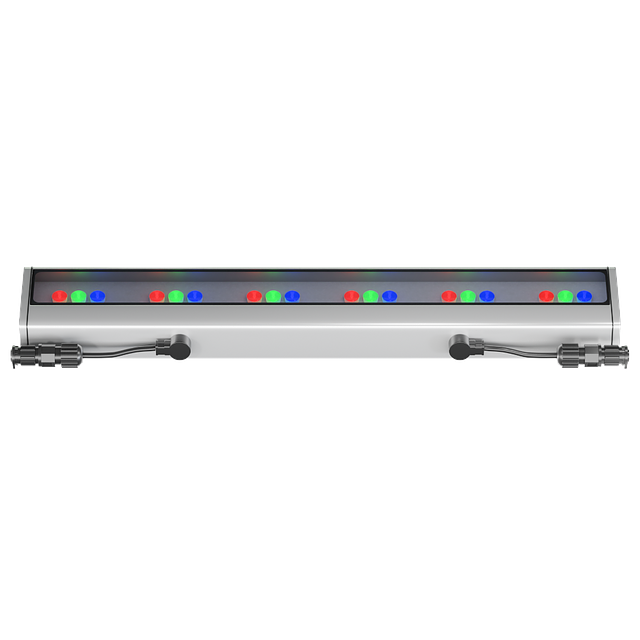

HB40SP RGB

Exterior: Graze | Wall Washing | Cove | Accent Lighting

The Smart Lighting Company HB40SP RGB Series is a robust linear exterior color-changing LED luminaire merging high performance with affordability for architectural lighting. Using just 11.9 watts per foot, this fixture is tailored for precision wall grazing, washing, cove, and accent illumination. The fixture’s LED board can be adjusted up to 20°, enabling precise control over lighting angles. Equipped with a universal 100/277VAC power supply and integral DMX modules, the HB40SP RGB is available in five lengths, offering a range of color temperatures to create dynamic lighting effects. The fixture is crafted using Nichia bin-sorted LEDs, renowned for their superior quality and even illumination, and paired with our strategically engineered optical lenses to maximize light output while reducing power consumption. The HB40SP RGB offers multiple customization options for fixture length, optics, and finishes. This fixture is self-addressing for easy integration and a Plug and Play power/signal connection for easy installation.
Specification Sheet
The Smart Lighting Company HB40SP RGB Series is a robust linear exterior color-changing LED luminaire merging high performance with affordability for architectural lighting. Using just 11.9 watts per foot, this fixture is tailored for precision wall grazing, washing, cove, and accent illumination. The fixture’s LED board can be adjusted up to 20°, enabling precise control over lighting angles. Equipped with a universal 100/277VAC power supply and integral DMX modules, the HB40SP RGB is available in five lengths, offering a range of color temperatures to create dynamic lighting effects. The fixture is crafted using Nichia bin-sorted LEDs, renowned for their superior quality and even illumination, and paired with our strategically engineered optical lenses to maximize light output while reducing power consumption. The HB40SP RGB offers multiple customization options for fixture length, optics, and finishes. This fixture is self-addressing for easy integration and a Plug and Play power/signal connection for easy installation.

Beam Angle

  • 15
  • 20
  • 30x60
  • 30
  • 45
  • 120

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 10 In. W: 3.43 In. H: 1.78 In.
  • L: 19 In. W: 3.43 In. H: 1.78 In.
  • L: 28 In. W: 3.43 In. H: 1.78 In.
  • L: 37 In. W: 3.43 In. H: 1.78 In.
  • L: 46 In. W: 3.43 In. H: 1.78 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens

  • 283
  • 539
  • 794
  • 1050
  • 1305

Lumens/Linear Ft.

  • 340

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Ceiling
  • Cove
  • Hanging
  • Surface
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts

  • 10.5
  • 19
  • 27.8
  • 36.6
  • 45.4

Watts / Linear Ft.

  • 13

Resources

Beam Angle

  • 15
  • 20
  • 30x60
  • 30
  • 45
  • 120

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 10 In. W: 3.43 In. H: 1.78 In.
  • L: 19 In. W: 3.43 In. H: 1.78 In.
  • L: 28 In. W: 3.43 In. H: 1.78 In.
  • L: 37 In. W: 3.43 In. H: 1.78 In.
  • L: 46 In. W: 3.43 In. H: 1.78 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens

  • 283
  • 539
  • 794
  • 1050
  • 1305

Lumens/Linear Ft.

  • 340

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Ceiling
  • Cove
  • Hanging
  • Surface
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts

  • 10.5
  • 19
  • 27.8
  • 36.6
  • 45.4

Watts / Linear Ft.

  • 13

Similar Products

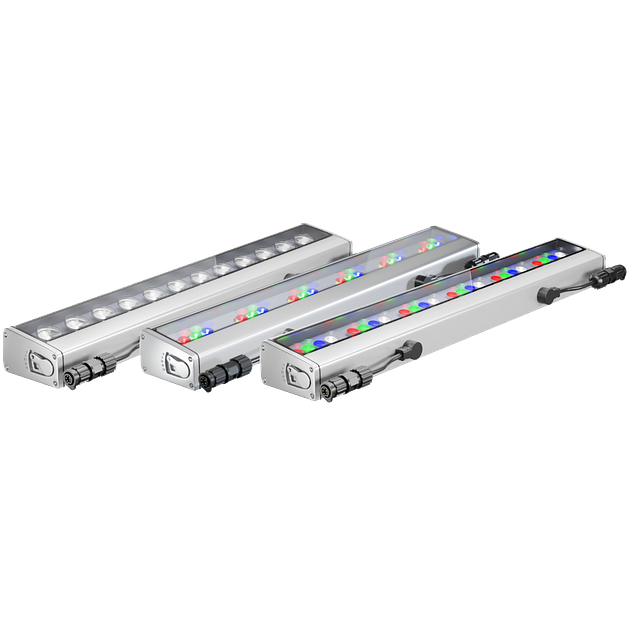

HB40SP Series Collection
