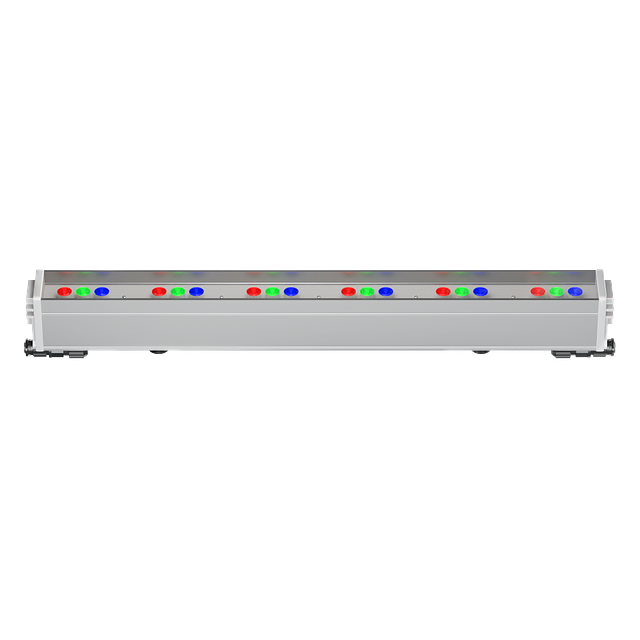

HB40HP RGB

Exterior: Graze| Wall Washing | Cove | Flood Lighting

The Smart Lighting Company HB40 Series wet location rated, high-performance linear fixtures designed for a range of exterior applications, including grazing, wall-washing, and flood lighting. With RGB color-changing capabilities at 13 watts per foot, it's ideal for creating dynamic and impactful lighting environments. These fixtures use Nichia bin-sorted LEDs and precision optics, ensuring high-quality, uniform illumination with less energy. Versatile and user-friendly, they feature DMX control and self-addressing capabilities, along with a variety of options for fixture length, color temperature, optics, mounting, and finishes. Each fixture includes an integral universal 100/277VAC power supply, is built with full thermal management, and is equipped with a Plug and Play cable system that simplifies installation while providing both power and signal. Constructed with a durable extruded anodized aluminum housing and tooled end caps, and featuring IP66 rated secure Plug and Play connectors, the HB40HP is perfect for providing powerful, consistent lighting.
Specification Sheet
The Smart Lighting Company HB40 Series wet location rated, high-performance linear fixtures designed for a range of exterior applications, including grazing, wall-washing, and flood lighting. With RGB color-changing capabilities at 13 watts per foot, it's ideal for creating dynamic and impactful lighting environments. These fixtures use Nichia bin-sorted LEDs and precision optics, ensuring high-quality, uniform illumination with less energy. Versatile and user-friendly, they feature DMX control and self-addressing capabilities, along with a variety of options for fixture length, color temperature, optics, mounting, and finishes. Each fixture includes an integral universal 100/277VAC power supply, is built with full thermal management, and is equipped with a Plug and Play cable system that simplifies installation while providing both power and signal. Constructed with a durable extruded anodized aluminum housing and tooled end caps, and featuring IP66 rated secure Plug and Play connectors, the HB40HP is perfect for providing powerful, consistent lighting.

Beam Angle

  • 15
  • 18x58
  • 18x26
  • 20
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 10 In. W: 1.69 In. H: 2.15 In.
  • L: 19 In. W: 1.69 In. H: 2.15 In.
  • L: 28 In. W: 1.69 In. H: 2.15 In.
  • L: 37 In. W: 1.69 In. H: 2.15 In.
  • L: 46 In. W: 1.69 In. H: 2.15 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 376

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Hanging
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 13

Resources

Beam Angle

  • 15
  • 18x58
  • 18x26
  • 20
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 10 In. W: 1.69 In. H: 2.15 In.
  • L: 19 In. W: 1.69 In. H: 2.15 In.
  • L: 28 In. W: 1.69 In. H: 2.15 In.
  • L: 37 In. W: 1.69 In. H: 2.15 In.
  • L: 46 In. W: 1.69 In. H: 2.15 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens/Linear Ft.

  • 376

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Arm
  • Bracket
  • Cove
  • Hanging
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts / Linear Ft.

  • 13

Similar Products

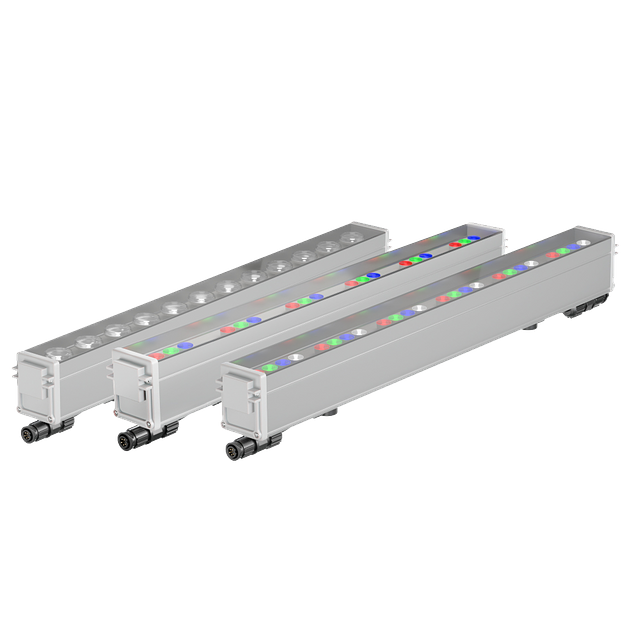

HB40HP Series Collection
