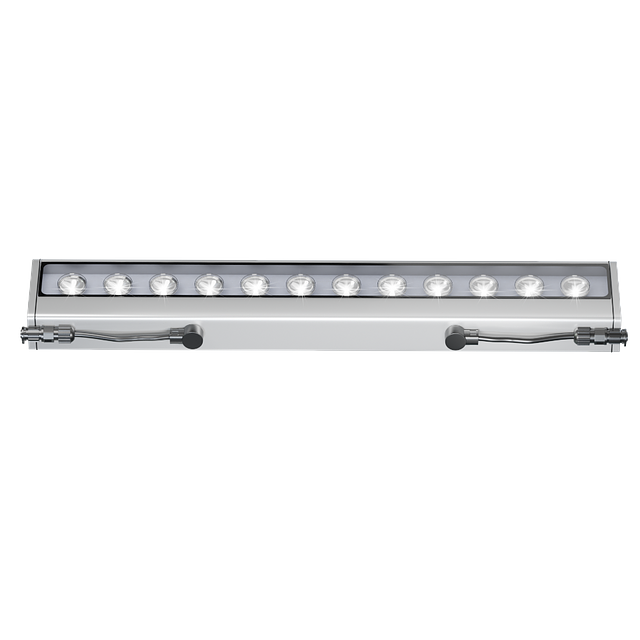

HB40SP

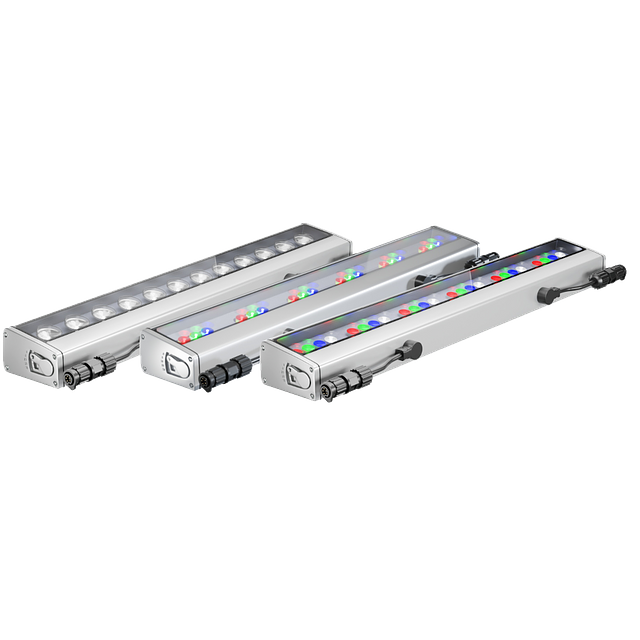

TSLC_Outdoor_0016_HB40SPgroup.pngHB40SP
Exterior Linear LED for Grazing, Wall Washing & Flood Lighting
The HB40SP Series is a cost‑effective, high‑performance exterior linear LED fixture designed for architectural grazing, wall washing, and flood lighting. Its adjustable optical board allows precise aiming from 0° to 20°, making it easy to target textures, façades, and landscape elements with accuracy.
The HB40SP Series is a cost‑effective, high‑performance exterior linear LED fixture designed for architectural grazing, wall washing, and flood lighting. Its adjustable optical board allows precise aiming from 0° to 20°, making it easy to target textures, façades, and landscape elements with accuracy.
Beam Angle
- 13x17
- 15
- 15x35
- 18x58
- 20
- 30x60
- 30
- 45
- 60
- 75
- 90
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
CRI
- 80
- 90
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 3.43 In. H: 1.78 In.
- L: 19 In. W: 3.43 In. H: 1.78 In.
- L: 28 In. W: 3.43 In. H: 1.78 In.
- L: 37 In. W: 3.43 In. H: 1.78 In.
- L: 46 In. W: 3.43 In. H: 1.78 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 726
- 975
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Ceiling
- Surface
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts
- 12
- 14
- 20
- 46
Watts / Linear Ft.
- 9
- 12
Resources
Beam Angle
- 13x17
- 15
- 15x35
- 18x58
- 20
- 30x60
- 30
- 45
- 60
- 75
- 90
- 120
CCT
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
CRI
- 80
- 90
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 3.43 In. H: 1.78 In.
- L: 19 In. W: 3.43 In. H: 1.78 In.
- L: 28 In. W: 3.43 In. H: 1.78 In.
- L: 37 In. W: 3.43 In. H: 1.78 In.
- L: 46 In. W: 3.43 In. H: 1.78 In.
Dimming Protocol
- 0-10 V
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens/Linear Ft.
- 726
- 975
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Ceiling
- Surface
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Static LED Color
- Amber
- Blue
- Green
- Red
- White
Voltage
- UNV
Warranty
- 5 yr
Watts
- 12
- 14
- 20
- 46
Watts / Linear Ft.
- 9
- 12
