HB40HP RGBW

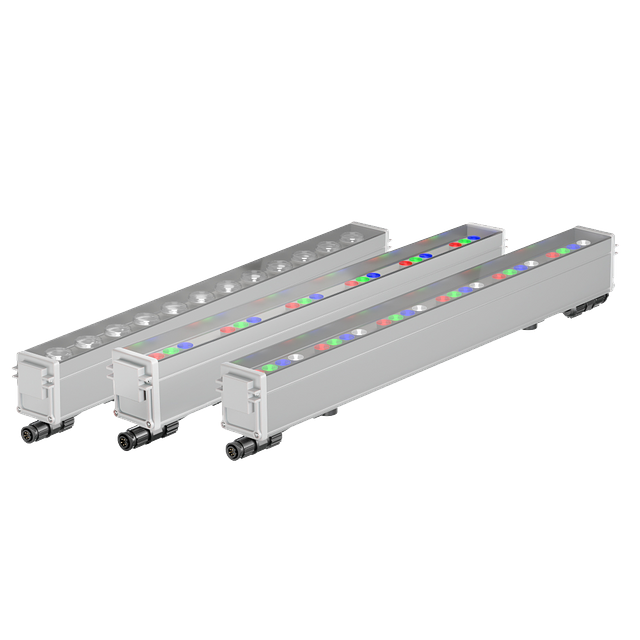

TSLC_Outdoor_0031_HB40HP-FAMILY.pngHB40HP RGBW
Exterior: Graze | Wall Wash | Flood Lighting
The HB40HP RGBW Series from Smart Lighting Company is a high-performance exterior linear LED fixture designed for architectural grazing, wall washing, and flood lighting applications. Built for demanding outdoor environments, this wet-location rated fixture delivers powerful, uniform illumination for building facades, landscape lighting, and architectural surfaces.
The HB40HP RGBW Series from Smart Lighting Company is a high-performance exterior linear LED fixture designed for architectural grazing, wall washing, and flood lighting applications. Built for demanding outdoor environments, this wet-location rated fixture delivers powerful, uniform illumination for building facades, landscape lighting, and architectural surfaces.
Beam Angle
- 15
- 18x58
- 18x26
- 20
- 26x18
- 30x60
- 30
- 45
- 58x18
- 60x30
- 60
- 75
- 90
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 1.68 In. H: 2.15 In.
- L: 19 In. W: 1.68 In. H: 2.15 In.
- L: 28 In. W: 1.68 In. H: 2.15 In.
- L: 37 In. W: 1.68 In. H: 2.15 In.
- L: 46 In. W: 1.68 In. H: 2.15 In.
Dimming Protocol
- DMX
Dynamic LED Color
- RGBW
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens
- 534
- 1015
- 1496
- 1976
- 2457
Lumens/Linear Ft.
- 641
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Voltage
- UNV
Warranty
- 5 yr
Watts
- 10
- 20
- 30
- 40
- 50
Watts / Linear Ft.
- 13
Resources
Beam Angle
- 15
- 18x58
- 18x26
- 20
- 26x18
- 30x60
- 30
- 45
- 58x18
- 60x30
- 60
- 75
- 90
- 120
CCT
- 2700K
- 3000K
- 3500K
- 4100K
- 5000K
- 6500K
Color / Finish
- Anodized Aluminum
- Black Powder Coat
- Bronze Powder Coat
- Silver Powder Coat
- White Powder Coat
Dimensions
- L: 10 In. W: 1.68 In. H: 2.15 In.
- L: 19 In. W: 1.68 In. H: 2.15 In.
- L: 28 In. W: 1.68 In. H: 2.15 In.
- L: 37 In. W: 1.68 In. H: 2.15 In.
- L: 46 In. W: 1.68 In. H: 2.15 In.
Dimming Protocol
- DMX
Dynamic LED Color
- RGBW
Lamp Life
- 90000
Lamp Source
- LED
Listings
- CSA
- UL
- cUL
Lumens
- 534
- 1015
- 1496
- 1976
- 2457
Lumens/Linear Ft.
- 641
Materials
- Aluminum
- Polycarbonate
Mounting
- Arm
- Bracket
- Wall
Ratings & Compliance
- Damp
- Dry
- Exterior
- IP66
- Interior
- Wet
Voltage
- UNV
Warranty
- 5 yr
Watts
- 10
- 20
- 30
- 40
- 50
Watts / Linear Ft.
- 13
