HB50A RGB

HB50A RGB

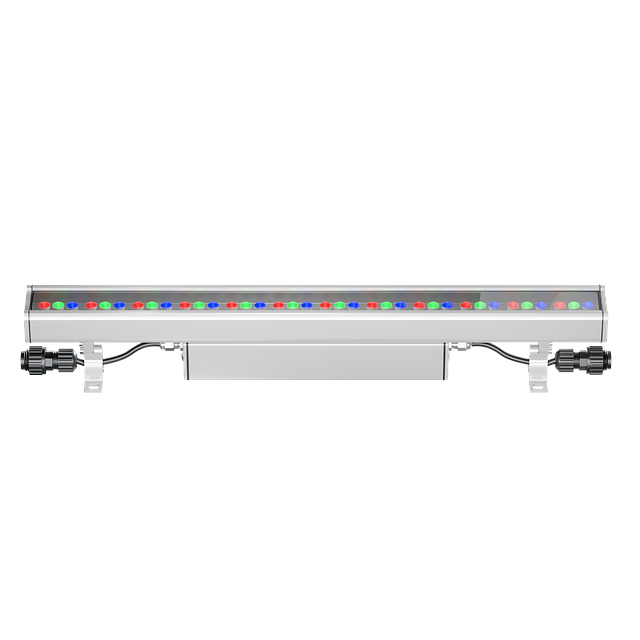

Exterior RGB Linear LED for Grazing, Wall Washing, Cove & Façade Lighting

The HB50A RGB Series is a high‑power exterior LED fixture for color‑changing grazing, wall washing, cove lighting, and façade lighting. It delivers 20 watts per foot and produces strong, saturated RGB light. The fixture can project light over 60 feet, making it effective for large exterior surfaces.
Specification Sheet
The HB50A RGB Series is a high‑power exterior LED fixture for color‑changing grazing, wall washing, cove lighting, and façade lighting. It delivers 20 watts per foot and produces strong, saturated RGB light. The fixture can project light over 60 feet, making it effective for large exterior surfaces.

Beam Angle

  • 15x35
  • 15
  • 18x58
  • 20
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

CRI

  • 80
  • 90

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 12 In. W: 2.35 In. H: 3.89 In.
  • L: 24 In. W: 2.35 In. H: 3.89 In.
  • L: 36 In. W: 2.35 In. H: 3.89 In.
  • L: 48 In. W: 2.35 In. H: 3.89 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Base

  • Integrated

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens

  • 855
  • 1710
  • 2565
  • 3420

Lumens/Linear Ft.

  • 855

Materials

  • Aluminum
  • Glass

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts

  • 20
  • 40
  • 60
  • 80

Watts / Linear Ft.

  • 20

Resources

Beam Angle

  • 15x35
  • 15
  • 18x58
  • 20
  • 30
  • 30x60
  • 45
  • 60
  • 75
  • 90
  • 120

CRI

  • 80
  • 90

Color / Finish

  • Anodized Aluminum
  • Black Powder Coat
  • Bronze Powder Coat
  • Silver Powder Coat
  • White Powder Coat

Dimensions

  • L: 12 In. W: 2.35 In. H: 3.89 In.
  • L: 24 In. W: 2.35 In. H: 3.89 In.
  • L: 36 In. W: 2.35 In. H: 3.89 In.
  • L: 48 In. W: 2.35 In. H: 3.89 In.

Dimming Protocol

  • DMX

Dynamic LED Color

  • RGB

Lamp Base

  • Integrated

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens

  • 855
  • 1710
  • 2565
  • 3420

Lumens/Linear Ft.

  • 855

Materials

  • Aluminum
  • Glass

Mounting

  • Arm
  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Voltage

  • UNV

Warranty

  • 5 yr

Watts

  • 20
  • 40
  • 60
  • 80

Watts / Linear Ft.

  • 20
