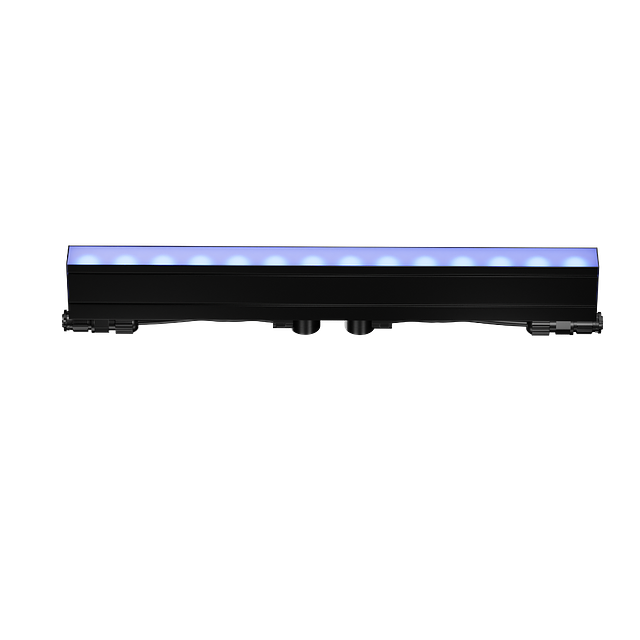

HB1814

Small Form, Big Impact: Architectural Exterior Illumination

The Smart Lighting Company’s HB1814 Series brings vibrant, even illumination to exterior coves, accents, and wall‑wash applications—all within an ultra‑compact housing that disappears into the architecture. Precision optics deliver a smooth, consistent glow that outperforms typical strip‑style solutions, while Nichia LEDs ensure high‑quality, energy‑efficient output. With an integrated universal driver, Plug & Play connectivity, and continuous lensing, the HB1814 installs quickly and cleanly. Its durable, powder‑coated aluminum construction meets the expectations of lighting designers seeking a refined, reliable, spec‑grade exterior solution.
The Smart Lighting Company’s HB1814 Series brings vibrant, even illumination to exterior coves, accents, and wall‑wash applications—all within an ultra‑compact housing that disappears into the architecture. Precision optics deliver a smooth, consistent glow that outperforms typical strip‑style solutions, while Nichia LEDs ensure high‑quality, energy‑efficient output. With an integrated universal driver, Plug & Play connectivity, and continuous lensing, the HB1814 installs quickly and cleanly. Its durable, powder‑coated aluminum construction meets the expectations of lighting designers seeking a refined, reliable, spec‑grade exterior solution.

Beam Angle

  • 30x60
  • 30
  • 45
  • 120

CCT

  • 2200K
  • 2500K
  • 2700K
  • 3000K
  • 3500K
  • 4100K
  • 5000K
  • 6500K

CRI

  • 85
  • 95

Color / Finish

  • Black Anodized

Dimensions

  • L: 12 In. H: 1.9 In. W: .79 In.
  • L: 24 In. H: 1.9 In. W: .79 In.
  • L: 36 In. H: 1.9 In. W: .79 In.
  • L: 48 In. H: 1.9 In. W: .79 In.

Dimming Protocol

  • 0-10 V

Distribution

  • Wall Wash

Lamp Base

  • Integrated

Lamp Life

  • 90000

Lamp Source

  • LED

Listings

  • CSA
  • UL
  • cUL

Lumens

  • 400
  • 800
  • 1200
  • 1600

Lumens/Linear Ft.

  • 400

Materials

  • Aluminum
  • Polycarbonate

Mounting

  • Bracket
  • Cove
  • Wall

Ratings & Compliance

  • Damp
  • Dry
  • Exterior
  • IP66
  • Interior
  • Wet

Shape

  • Linear

Static LED Color

  • Amber
  • Blue
  • Green
  • Red

Voltage

  • UNV

Warranty

  • 5 yr

Watts

  • 4
  • 8
  • 12
  • 16

Watts / Linear Ft.

  • 4
